C002332_15_CR3_User_Manual 13

Save Settings

1.8.3 - PS/2 Cable Installation Guide

1. Power off the computer. If you disconnect the computer’s keyboard while it is powered on, your computer will lock up.

2. Attach the the PS/2 cable to the CR3.

3. If you have a cabled keyboard, detach the keyboard cable from the computer and connect that same connector to the

female connection on the CR3 PS/2 cable (Figure 1.17).

4. Now connect the male CR3 PS/2 connector into the keyboard port on the computer (Figure 1.18).

5. Power on the computer. The CR3 is powered by the PS/2 port and does not require a power supply.

6. Once properly connected, the CR3 will power on and beep.

Code does not guarantee compatibility

with all models of computers.

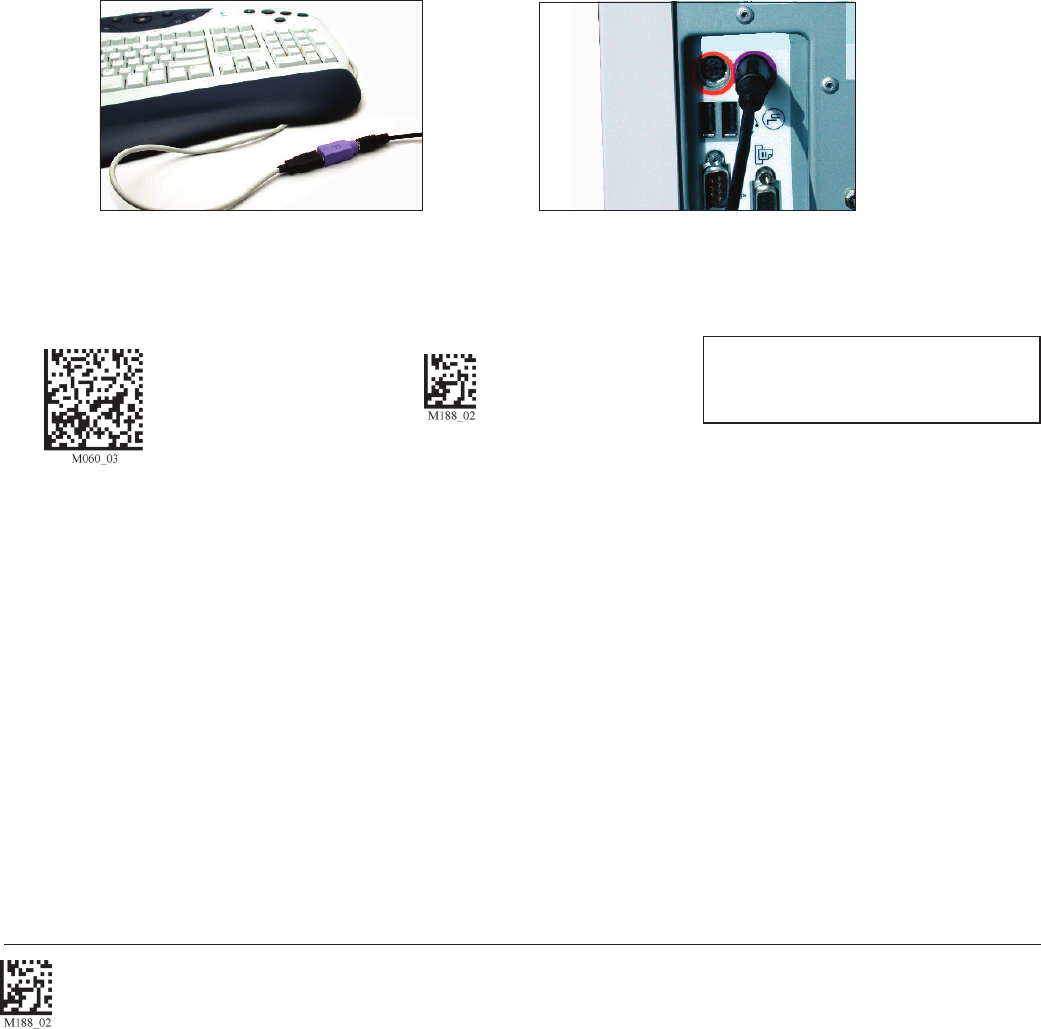

Figure 1.17

Figure 1.18

Save Settings

PS/2 Factory Reset
